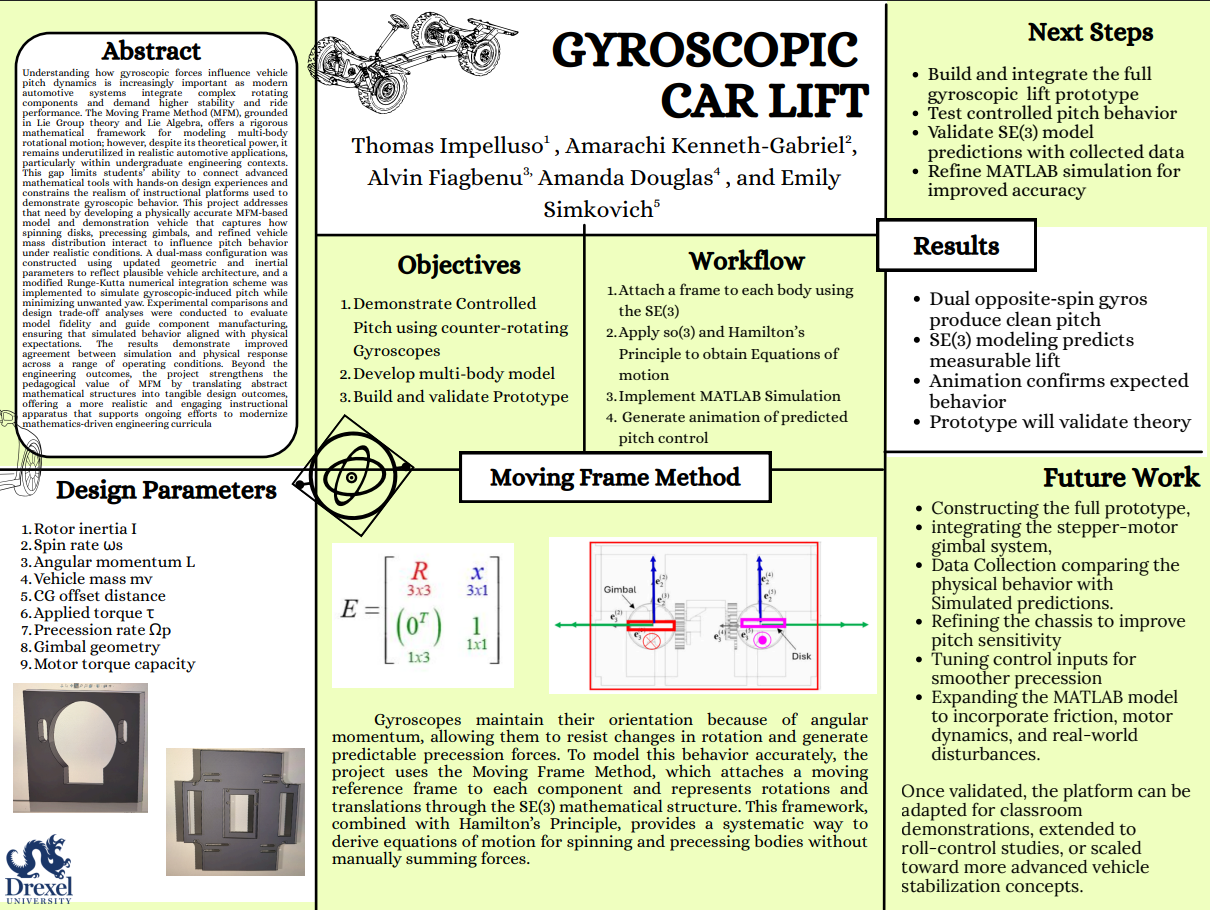

Gyroscopic Car Lift

Understanding how gyroscopic forces influence vehicle pitch dynamics is increasingly
important as modern automotive systems integrate complex rotating components and demand higher stability and ride performance. The Moving Frame Method (MFM), grounded in Lie Group theory and Lie Algebra, offers a rigorous mathematical framework for modeling multi‑body rotational motion; however, despite its theoretical power, it remains underutilized in realistic automotive applications, particularly within undergraduate engineering contexts. This gap limits students’ ability to connect advanced mathematical tools with hands‑on design experiences and constrains the realism of instructional platforms used to demonstrate gyroscopic behavior. This project addresses that need by developing a physically accurate MFM‑based
model and demonstration vehicle that captures how spinning disks, precessing gimbals, and refined vehicle mass distribution interact to influence pitch behavior under realistic conditions. A dual‑mass configuration was constructed using updated geometric and inertial parameters to reflect plausible vehicle architecture, and a modified Runge-Kutta numerical integration scheme was implemented to simulate gyroscopic‑induced pitch while minimizing unwanted yaw. Experimental comparisons and design trade‑off analyses were conducted to evaluate model fidelity and guide component manufacturing, ensuring that simulated behavior aligned with physical expectations. The results demonstrate improved agreement between simulation and
physical response across a range of operating conditions. Beyond the engineering outcomes, the project strengthens the pedagogical value of MFM by translating abstract mathematical structures into tangible design outcomes, offering a more realistic and engaging instructional apparatus that supports ongoing efforts to modernize mathematics‑driven engineering curricula.
